IntraOs 70 Dental X-Ray unit.
IntraOs 70 a new vision of dental radiology
IntraOs 70 is a traditional dental X-ray equipment designed to face the most demanding needs of the dental profession both when using traditional films and digital imaging receptor. Main feature of system is the great energy offering obtained by combining the voltage potential of 70 kVp and the anodic current of 7 mA with a wide range of exposure times, from 60 ms to 3.2 s.
FDA AND UL APPROVED!
The possible selections of technical parameters satisfy all the needs of both dental offices using traditional films with chemical processing as well as those equipped with low-radiation-dose digital sensors.
The small focal spot, the beam limiting device with effective near focus collimation, and the penetration power of a 70 kVp radiation beam make the best combination of which grant sharp images with good radiographic contrast for optimal detail perception.
Depending on selected configuration, features such as grid control action and compensation of mains fluctuations assure consistent film blackening in a wide range of operating conditions, thus granting high diagnostic quality at first time (less retakes). Available configurations include wall or unit mounted solutions and mobile.

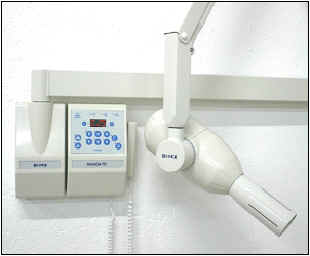

Wall mounted system feature short, medium, or long extension arms giving a useful reach up to 185 cm when combined with the folding arm, and up to 137 cm when equipped with the simple one. The mobile version comes with a simple arm and a short extension 40 cm long.
The systems can come with the AutoSet timer thus offering the best flexibility of use. Common functionality include a green light for system ready, a yellow light and a buzzer for aadiation emission, and a red light for aulty condition; each timer and each hand-switch can be remotely mounted.
AutoSet
Electronic timer microprocessor controlled, with flat keyboard; automatic setting of exposure time from 60 ms to 3,2 through object programmed selection according to tooth type and patient size; manual override (plus or minus) if required; digital display of selected values; dose reduction for digital receptors; pre-setting of film sensitivity and beam collimator length is required; automatic compensation of mains fluctuations selectable on request; full protection against tube over-heating with accurate cool-down control procedure for minimum waiting time; improved safety features with back-up timer and x-ray cut-off with 揹ead-man� functionality selective alarm messages.
Tube Head
� Type: standard or grid-control action
� Mains voltage: 120/230 VAC, 50/60 Hz
� High Voltage Potential: 70 kVp
� Anodic Current: 7 mA
� Focal Spot: 0.8 IEC 336/1982
� Duty Cycle: 1/60
� Inherent Filtration: � 2.1 mm AI
� Focus Skin Distance: 20 cm
� Output Radiation Field: Round � 6 com
� Coaxial connection, free rotation in horizontal plane
� Weight: 6.5 kg
Mechanical System
The wall mounted suspension system includes:
� Wall support (dimensions: 12 cm width, 24 cm height, 9 cm depth)
� 45, 70, and 90 cm extension arms
� Folding arm; useful reach of 140 cm with 45 cm extension arm, 165 cm with 70 cm extension arm, 185 cm with 90 cm extension arm
� Simple arm; useful reach of 92 cm with 45 cm extension arm, 117 cm with 70 cm extension arm, 137 cm with 90 cm extension arm
Timer AutoSet
� Mains: 115/230 VAC, 50/60 Hz
� Microprocessor controlled functionality
� Zero-crossing power switching
� Automatic setting of exposure time by object selection
� Manual setting of exposure time from 60 ms to 3.2 s (plus or minus, 18 steps)
� Child or adult patient selection
� How dose setting for digital receptors
� Hand-switch provided with 3 m coiled cord
� Automatic compensation of mains fluctuations selectable on request
� Back-up Timer
� Timer and hand-switch can be remotely mounted
� Dimensions: 15 cm with, 24 cm height, 9 cm depth
FULL ONE YEAR WARRANTY ON PARTS AND LABOR.
